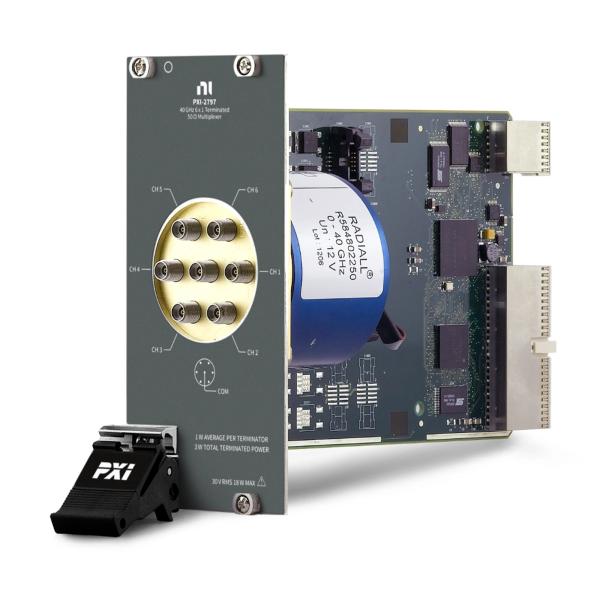

PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth

Name: PXI2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth
Brand: National Instruments
Price: 10 USD

Cheap PXI-2797 RF Multiplexer Switch Module Electronic Test Instruments With 40GHz Bandwidth for sale

Price : $10,000/sets >=1 sets

Place of Origin : China

MOQ : one

Packaging Details : standard packaging

Delivery Time : Delivery time for minimum order quantity ≤ 30 days

Payment Terms : T/T ‌L/C

Supply Ability : 100 units/day

Brand Name : National Instruments

Model Number : PXI-2797

warranty : 3 months

customized support : OEM

place of origin : American

brand name : National Instruments

model number : PXI-2797

Contact Now

名字	国家仪器 PXI-2797 射频多路复用器开关模块

国家仪器 PXI-2797 射频多路复用器开关模块

NI PXI-2797(部件编号:782357-01)是一个用于自动测试应用中路由射频或微波信号的6x1终端多路复用开关模块.该模块插入损耗小于1 dB,频率最高可达40 GHz,在较低频率下表现出相对不明显的信号.当需要高控制信号反射和50欧姆终端时,可以使用这个射频多路复用开关模块.PXI-2797也适用于通过射频上变频器传递高次谐波,例如NI PXIe-5673 6.6 GHz射频信号发生器,或者将不同源引导到射频下变频器,例如NI PXIe-5663 6.6 GHz射频信号分析仪.该型号可以通过数字滤波来感知宽度小于150 ns的触发脉冲.

NI PXI-2797射频多路复用器开关模块由行和列组成,通过使用户能够将任何通道关联到不同的通道,为切换框架提供了最大的适应性.NI PXI-2797射频多路复用器开关模块使用了由铜和金制成的电磁非保持继电器.该模块还具有一个银行和六个通道.

此外,NI开关模块提供高级功能,例如硬件触发,继电器健康监测,板载继电器数量跟踪和各种可重新配置的型号,使用户能够根据需求调整开关拓扑结构.这些高级功能为从消费电子到航空等各个行业的复杂应用提供了一种更智能的解决方案.

总线连接器:PXI混合
最大交流切换电压:30 V
继电器类型:电磁机械
切换带宽:40 GHz
特性阻抗:50 欧姆
最大插入损耗:-0.6 dB
通道数:6
组数:1
终端:是
