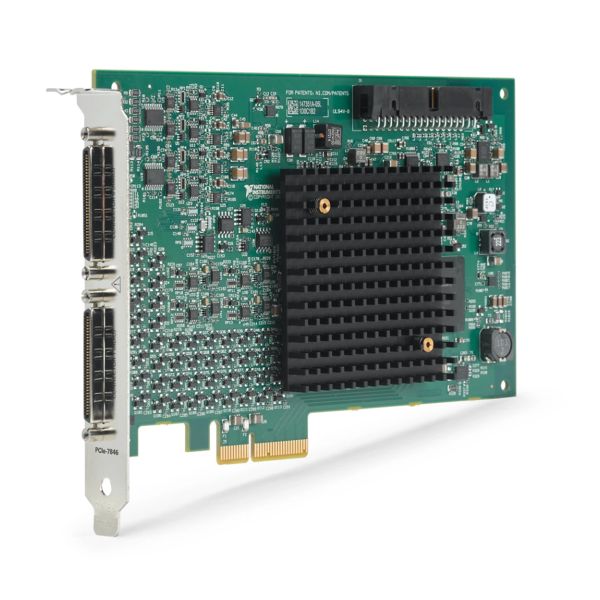

National Instruments PCIe-7846 Multifunction Reconfigurable I/O Device with 500 kS/s Sampling Rate 8 Analog Input and 8 Analog Output Channels

Price : $1,000/sets >=1 sets

Place of Origin : China

MOQ : one

Packaging Details : standard packaging

Delivery Time : Delivery time for minimum order quantity ≤ 30 days

Payment Terms : T/T ‌L/C

Supply Ability : 100 units/day

Brand Name : National Instruments

Model Number : PCIe-7846

warranty : 3 months

customized support : OEM

place of origin : American

brand name : National Instruments

model number : PCIe-7846

Contact Now

名字 国家仪器 PCIe-7846 多功能可重新配置 I/O 设备

国家仪器 PCIe-7846 多功能可重新配置 I/O 设备

NI PCIe-7846(部件编号:786456-01)具有500 kS/s的采样率,8个模拟输入,8个模拟输出和48个数字输入/输出通道,是一款多功能可配置I/O设备.该设备设计用于PCI Express插槽,因此用户可以将设备插入Windows操作系统个人电脑中的空闲插槽.NI PCIe-7846需要一个PCIe插槽；它不需要额外的电源,因为它从PCIe总线上获取所需的电源.

该设备的模拟输入通道可以工作在DIFF,RSE或NRSE输入模式中.这些模式是通过软件选择的,所选择的模式适用于所有通道.通过其模拟输入通道进行数据采集时,NI PCIe-7846使用专用的,分辨率为16位,转换时间为2微秒的SAR ADC.

这个多功能可重新配置的输入/输出设备在所有的模拟输入通道上提供集成的过压保护.该设备上的8个模拟输出通道是单端,16位分辨率,1微秒更新时间和最大1 MS/s更新率的电压输出.对于数字到模拟转换,集成了一个增强型R-2R DAC.

NI PCIe 7846设备也可以与外部时钟耦合.该设备中使用的可重新配置FPGA是Kintex-7 160T.FPGA包含202,800个触发器,101,400个LUT,以及11,700千比特的嵌入式块RAM.该设备有16个DMA通道.PCIe-7846设计用于符合PCIe规范版本1.0.
